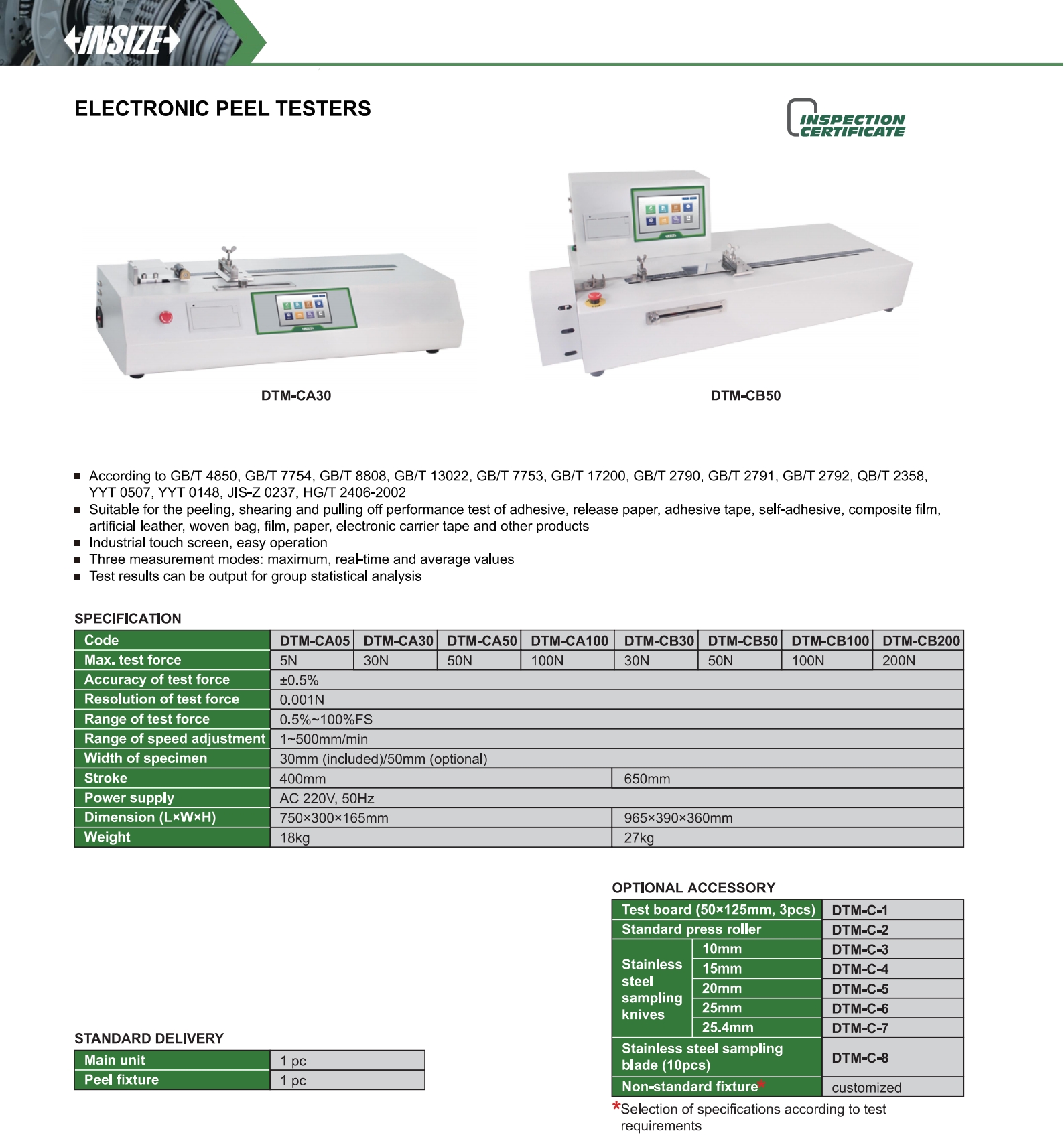

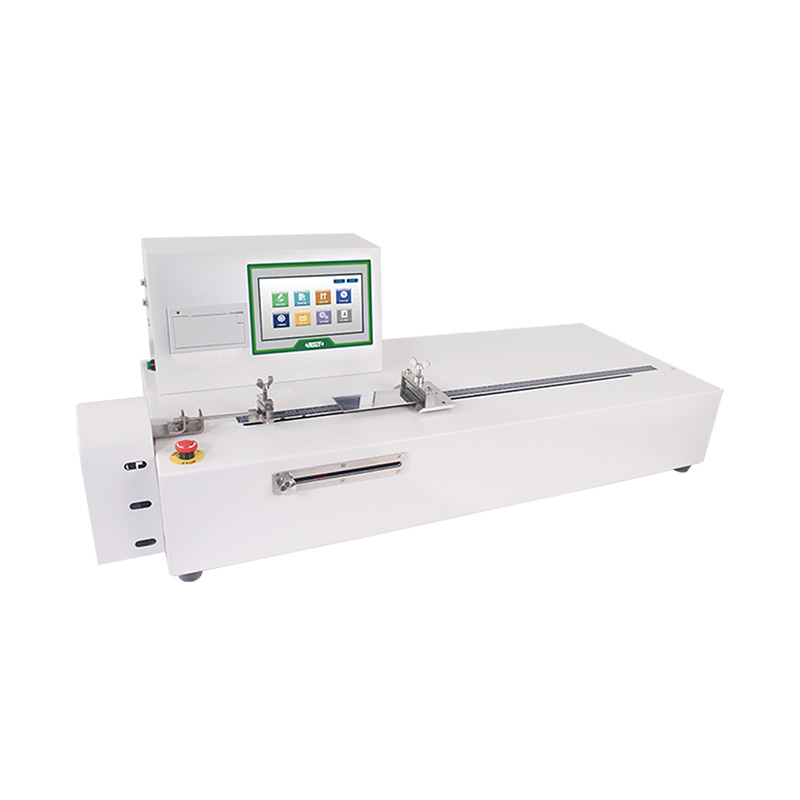

Electronic Peel Testers
Code: DTM-C series
According to GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358,YYT 0507, YYT 0148, JIS-Z 0237, HG/T 2406-2002
Suitable for the peeling, shearing and pulling off performance test of adhesive, release paper, adhesive tape, self-adhesive, composite film, artificial leather, woven bag, film, paper, electronic carrier tape and other products
Industrial touch screen, easy operation
| Code | Max. test force | Accuracy of test force | Resolution of test force |
|---|---|---|---|
| DTM-CA05 | 5N | ±0.5% | 0.001N |
| DTM-CA30 | 30N | ±0.5% | 0.001N |
| DTM-CA50 | 50N | ±0.5% | 0.001N |
| DTM-CA100 | 100N | ±0.5% | 0.001N |
| DTM-CB30 | 30N | ±0.5% | 0.001N |
| DTM-CB50 | 50N | ±0.5% | 0.001N |
| DTM-CB100 | 100N | ±0.5% | 0.001N |
| DTM-CB200 | 200N | ±0.5% | 0.001N |
View the complete
product specifications
