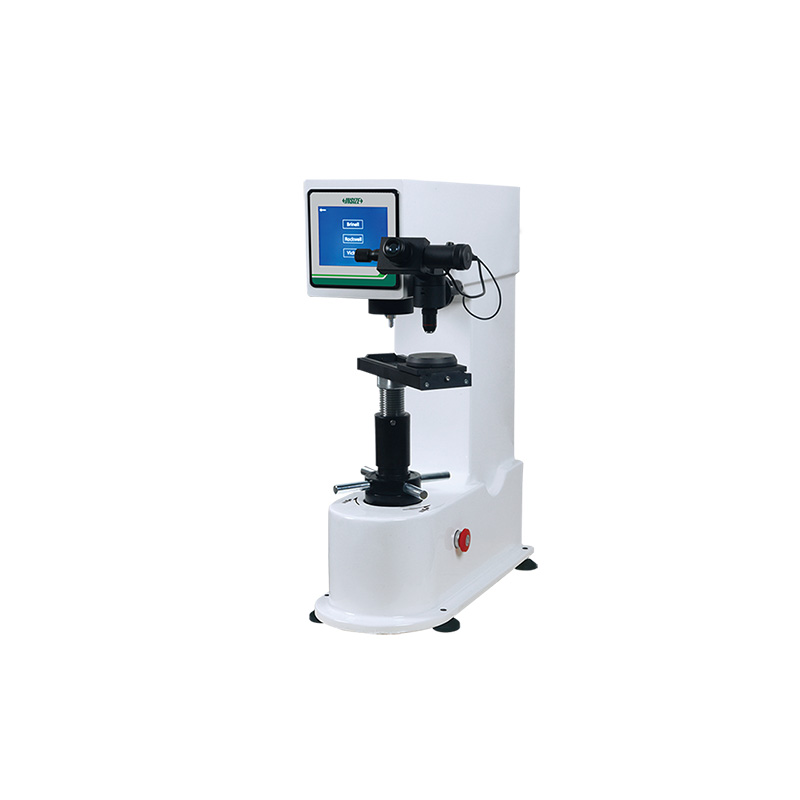

Motorized Digital Rockwell/Brinell/Vickers Hardness Tester
Code: HDT-BRV330
5.6" color touch LCD display
Electronic closed-loop control of the applied test force, easy to use, stable display value
Total of 21 measurement scales, including Brinell, Rockwell and Vickers test method
Convertible to various hardness standards such as HB, HV, HRC, HK, etc.
Two types of internal and external illumination are available, and different illumination is used according to the size of the indentation to make the indentation clearer
| Code | Type | Load control | Max. workpiece height | Max. testing width | Hardness scale |
|---|---|---|---|---|---|
| HDT-BRV330 | Brinell | automatic (load/dwell/unload) | 165mm | 160mm | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/100, HBW10/250 |
| HDT-BRV330 | Rockwell | automatic (load/dwell/unload) | 180mm | 160mm | HRA, HRB, HRC, HRD, HRF, HRG |
| HDT-BRV330 | Vickers | automatic (load/dwell/unload) | 165mm | 160mm | HV3, HV5, HV10, HV20, HV30, HV50, HV100 |
View the complete
product specifications
