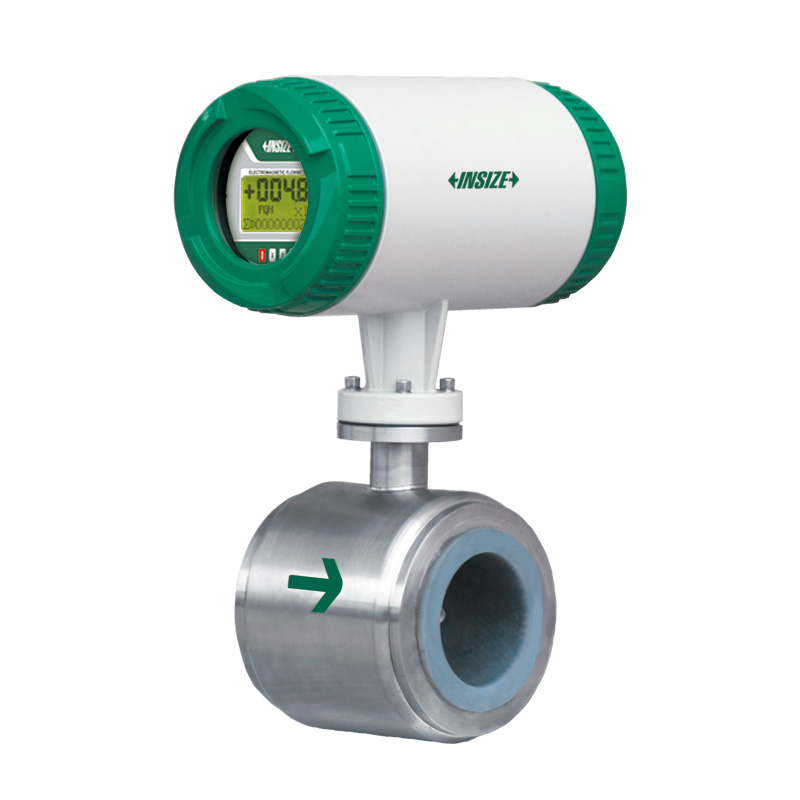

Wafer Electromagnetic Flowmeters
Code: 0904-□□□□□□□□□□
Adopts a new hygienic lining material to prevent medium residue from accumulating inside the measuring tube
Quick-connect design enables easy disassemble, maintenance and cleaning, ideal for food, pharma, water purification and other general applications
No moving parts or flow resistance inside the measuring tube, no pressure loss
Not affected by flow direction, accurate measurement is available in both forward and reverse directions
Measures and displays instantaneous flow rate, velocity and totalized flow
Flow accumulation function: forward total, reverse total, difference total
Upper and lower flow limit alarm function
Empty pipe alarm function
| Code | Accuracy | Connection | Nominal diameter |
|---|---|---|---|
| 0904-□□□□□□□□□□ | ±0.5%, ±0.2% (optional) | wafer type | DN25~DN200 |

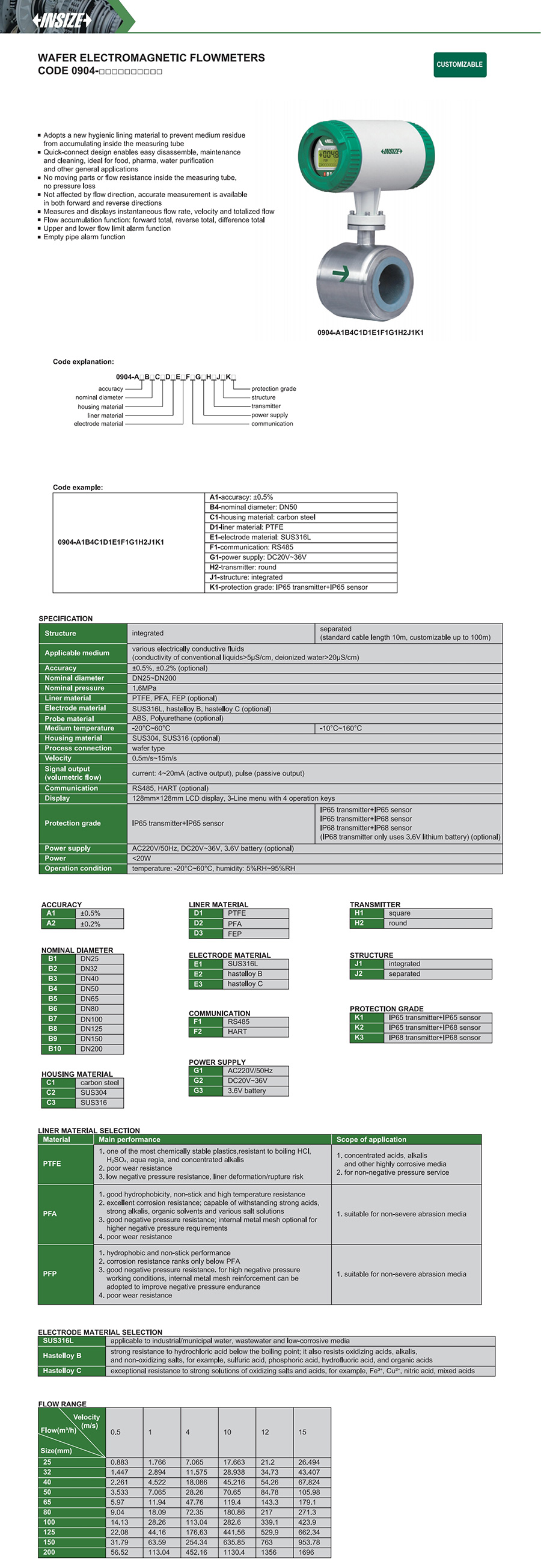

View the complete
product specifications
